Product model |
machine hand safety sensor factory SWP0620 |
| 2 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Standard configuration |

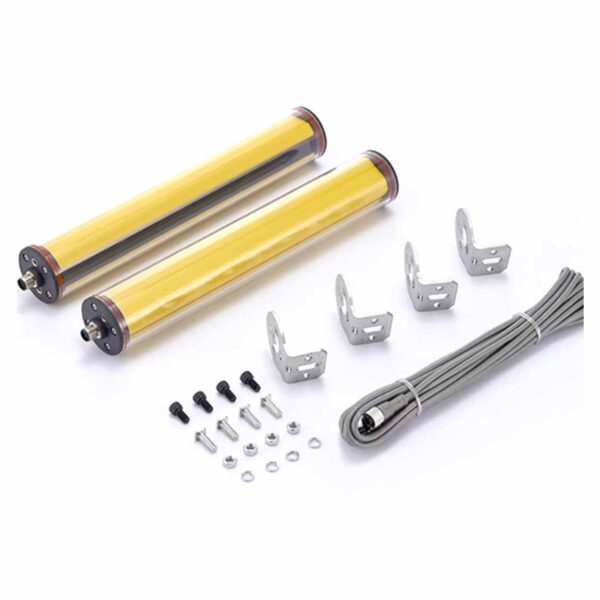

One receiver, one transmitter, two data lines, one right-angle rack, and one t-shaped screw |
| 3 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Light curtain source |
Infrared radition type |
| 4 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Application |
Standard industrial environment |
| 5 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Features |
|
| 6 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Number of beams |
6 |
| 7 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Beam Space |
20mm |
| 8 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Protect Height |
100mm |
| 9 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Overall Height |
190mm |
| 10 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Cross-section diameter |
50mm |
| 11 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Response time |
≤15ms |
| 12 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Synchronization |
Light synchronization |
| 13 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Output mode |
2-circuit of PNP, with current of 500mA and voltage below 1.5V, polarity, short circuit and over-cutting protection |
| 14 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Output status |
ON (receiving indicator green light) |
| 15 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Indicator light |
Transmitter: power indicator light (red); receiver: output indicato「light on (green), blackout (red) |
| 16 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Wavelength |
940NM |
| 17 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Type of light |
Infrared light (NIR), invisible |
| 18 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Function |
Automatic reset |
| 19 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Mechanical data |
|
| 20 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Housing material |
Metal |
| 21 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Metal shell |
Aluminium |
| 22 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Lens front screen material |
Acrylic |
| 23 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Upper and lower cover materials |
ABS reinforced nylon PA66+30% GF |
| 24 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Performance data |
|
| 25 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Protection circuit |
Short circuit protection
Overvoltage protection |
| 26 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Supply voltage |
DC24V, -20…20% |
| 27 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Output Current |
500MA(NPN/PNP) |
| 28 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Fuse |
150mA |
| 29 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
maximum power |
5W |
| 30 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Environmental data |
|
| 31 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Protection grade |
IP68 |
| 32 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Anti-optical interference |
10000Lux(angle>5°) |
| 33 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Operating Temperatuer |
-10°C ~55°C |
| 34 |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
afetycurtainadministrator-Michelle |
11/05/2026 08:21 AM |
Operating Humidity |
0~95%RH |
